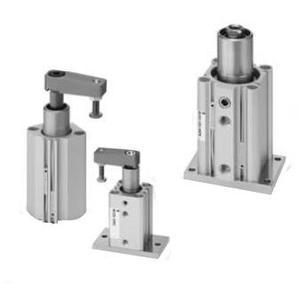

Rotary Clamp Cylinder MK
Acting : Double acting
Bore size : 12,16,20,25,32,40,50,63mm
Rotary Clamp Cylinder MK/MK2/MK2T
Acting : Double acting
Bore size : 12,16,20,25,32,40,50,63mm
Pin Clamp Cylinder C(L)KQG/C(L)KQP
Acting : Double acting
Bore size : 50mm
Guide pin shape : Round Diamond
Pin Clamp Cylinder CKQG32/CKU32
Acting : Double acting
Bore size : 32mm
Guide pin shape : Round
Clamp Cylinder CKx1
Acting : Double acting
Bore size :40,50,63mm
Clevis width (mm): 16.5, 19.5
Clamp Cylinder with Lock CLK2
Acting : Double acting
Bore size : 32,40,50,63 mm
Clevis width (mm): 12, 16.5, 19.5
Clamp Cylinder/Slim Style C(L)KG/C(L)KP-X2095
Acting : Double acting
Bore size : 25, 32, 40 mm
Clevis width (mm): 9, 12, 5
For North America/Europe Power Clamp Cylinder CKZ3
Acting : Double acting
Bore size : 50,63 mm
Arm opening angle : 15º,30º,45º, 60º,75º,90º, 105º,120º,135º
Switch : TURCK/P&F
For North America Power Clamp Cylinder CKZ2N
Acting : Double acting
Bore size :50,63, 80 mm
Arm opening angle : 30º,45º,60º,75º, 90º,105º,120º,135º
Switch : TURCK/P&F
For Europe Power Clamp Cylinder CKZT
Acting : Double acting
Bore size : 50,63 mm
Arm opening angle : 30º,45º,60º,75º, 90º,105º,120º,135º
Switch : TURCK/P&F
For France Power Clamp Cylinder CLKZ1R
Acting : Double acting
Bore size : 40,50,57 mm
Arm opening angle : 15o,30º,45º,60º,75º, 90º,105º
Switch : TURCK/P&F
Other Clamp Cylinders
Pin Clamp Cylinder (Compact body type) : series CKU
Bore size : ϕ32 – ϕ50mm
Maximum operating pressure : 0.7 MPa
Operating stroke (mm) : 12- 15
Cushion : Rubber bumper
Pin Shift Cylinder Series CKQR
Bore size : ϕ63mm
Maximum operating pressure : 0.7 MPa
Operating stroke (mm) : 25 or 50
Plate Clamp Cylinder Series M(D)UKA
Bore size : ϕ50 - ϕ63mm
Maximum operating pressure : 0.7 MPa
Operating stroke (mm) : 50, 75, 100, 125, 150
Cushion : Rubber bumper
Clamp Cylinder Series CKGV
Bore size : ϕ32, ϕ50, ϕ63, ϕ80mm
Maximum operating pressure : 0.7 MPa
Operating stroke (mm) : 50, 75, 100, 125, 150
Cushion : Rubber bumper
Pin Shift Cylinder Series CKZP
Bore size : ϕ40, ϕ63 mm
Maximum operating pressure : 0.8 MPa
Operating stroke (mm) : 40
Cushion : Rubber bumper
Frame Clamp Cylinder
Bore size : ϕ100 mm
Maximum operating pressure : 0.2 - 0.5 MPa
Operating stroke (mm) : 48
Cushion : Rubber bumper
