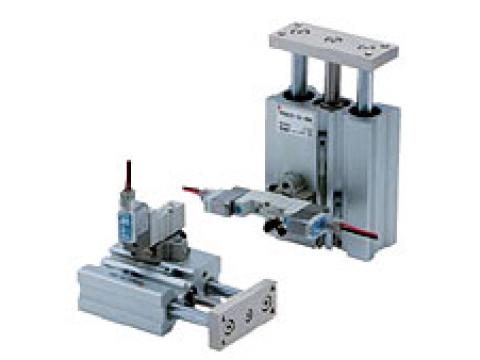

Valve được đặt trên xilanh

Valve được đặt trên xilanh

[Liên hệ để biết giá sản phẩm]

Còn hàng

Valve Mounted Compact Cylinder CVQ

Acting : double acting

Bore size : 32,40,50,63 mm

Cylinder : CQ2

Valve : SY3000

  •     Integration of a valve and a compact cylinder
  •     Saves manpower, space and energy.

Compact Cylinder with Solenoid Valve/Guide Rod Type CVQM

Acting : double acting

Bore size : 32,40,50,63 mm

Cylinder : CQM

Valve : SY3000

  • Integration of guide rod and solenoid valve in the CQ2 series compact cylinder.
  • Non-rotating accuracy ±0.2º or less
  • Lateral load resisting 2 to 3 times (Compared to the CDQ2 series compact cylinder)
  • Load can be directly mounted.
  • Mounting pitch is interchangeable with the CQ2 series.
  • Saves manpower, space and energy.

Valve Mounted Air Cylinder CVx

Acting : double acting, Single acting (Return/Extend)

Bore size : 10,16, 20,25,32,40,50,63,80,100 mm

Cylinder : CJ2, CM2, CA1, CS1, CM2K, CA1K, CS1K

Valve : SYJ3190, SYJ319, VZ3x90, VZ319, VZ3x08, VS4x24, VZ3x90, VZ319, VZ3x08, VS4x24

  • Valve is mounted on a round cylinder.
  • Built-in speed controller for some models.
  • Cylinder with a valve makes it easy to adjust speed

Valve Mounted Guide Cylinder MVGQ

Bore size : 10,16, 20,25,32,40,50,63,80,100 mm

Cylinder : CJ2, CM2, CA1, CS1, CM2K, CA1K, CS1K

Valve : SYJ3000, VZ3000,VZ5000, VF3000

  • Valve, speed controller and cylinder combined in one unit
