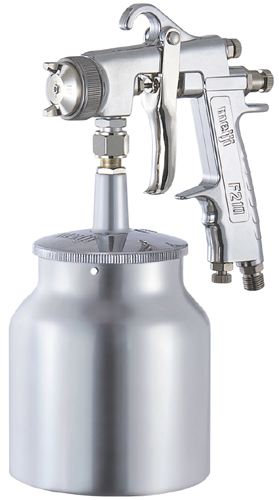

MEIJI Súng xịt sơn cầm tay F210-S with 10SC paint cup

MEIJI Súng xịt sơn cầm tay F210-S with 10SC paint cup

[Liên hệ để biết giá sản phẩm]

Còn hàng
Model No. F210-S15
<F210-S15T>
F210-S20
<F210-S20T>
F210-S25
<F210-S25T>
F210B-S30
Paint feed system Suction
Nozzle Bore mm 1.5 2.0 2.5 3.0
Standard air cap 15
<15T>
20
<20T>
25
<25T>
30
Spraying Pressure MPa 0.25
Spraying distance mm 250
Air con-sumption L/min 170
<250>
220
<280>
275
<335>
320
Paint spraying volume mL/min 205
<220>
285
<265>
350
<325>
360
Maximum effective pattern width mm 220
<300>
280
<310>
300
<320>
300
Pattern Shape Triangle
<Tulip>
Required compressor output kW 1.5<2.2> or more 2.2<2.2> or more 2.2<3.7> or more 3.7 or more
Weight g 391
Standard paint cup Paint pressure feed tanks, diaphragm paint pumps
Measurement m3 0.06/25PC
