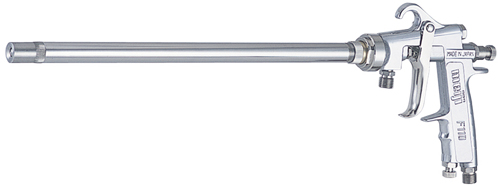

MEIJI Súng xịt sơn cầm tay F110-PX17LA(300) (for spraying inside pipes)

MEIJI Súng xịt sơn cầm tay F110-PX17LA(300) (for spraying inside pipes)

[Liên hệ để biết giá sản phẩm]

Còn hàng
Model No. F110-PX11L F110-PX17LA
Full cone Hollow cone
Type Pipe inside spraying extension gun
Paint feed system Pressure
Nozzle bore mm 1.5 1.3
Spraying pressure MPa 0.25 0.3
Air con-sumption L/min 70 180
Paint spraying volume mL/min 120 130 300(130)
Maximum effective pattern width mm 60 100 300(250)
Required compressor output kW 0.75 1.5
Head angle and inner dia. into
which head can be inserted
mm 0°:13(straight only) 0°:20(straight only)
Pipe length mm 500 1000 1500 1800*
Weight g 550(Pipe lenght:500mm) 710(Pipe lenght:500mm)
Standard paint cup m3 Paint pressure feed tanks, diaphragm paint pumps
