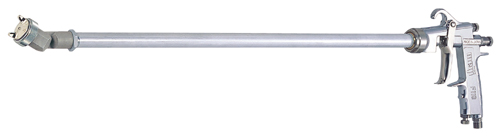

MEIJI Súng xịt sơn cầm tay F110-GXC(500)

MEIJI Súng xịt sơn cầm tay F110-GXC(500)

[Liên hệ để biết giá sản phẩm]

Còn hàng
Model No. F110-PXC10P
<F110-PX10P>
F110-PXC13P
<F110-PX13P>
F110-SXC15
<F110-SX15>
F110-GXC15
<F110-GX15>
Type Head angle variable type extension spray gun
<Extension spray gun>
Paint feed system Pressure Suction Gravity
Nozzle bore mm 1.0 1.3 1.5
Spraying pressure MPa 0.25
Air con-sumption L/min 160<180> 175<195> 125<140>
Paint spraying volume mL/min 190<245> 235<310> 60<120> 65<140>
Maximum effective pattern width mm 210<230> 220<240> 110<150> 115<160>
Required compressor output kW 1.5 0.75
Head angle and inner dia. into which head can be inserted mm 0°:40 90°:60
<0°:40 45°:55>
Pipe length mm 500 1000*
<500 1000 1500 1800*>
500*
<500*>
Weight g 620(Pipe length:500mm)
<555(Pipe lenght:500mm)>
Standard paint cup m3 Paint pressure feed tanks, diaphragm paint pumps 7SB, 7SLB 2GA, 4GD, 4GB-U



Model No. F110-PX11L F110-PX17LA
Full cone Hollow cone
Type Pipe inside spraying extension gun
Paint feed system Pressure
Nozzle bore mm 1.5 1.3
Spraying pressure MPa 0.25 0.3
Air con-sumption L/min 70 180
Paint spraying volume mL/min 120 130 300(130)
Maximum effective pattern width mm 60 100 300(250)
Required compressor output kW 0.75 1.5
Head angle and inner dia. into
which head can be inserted
mm 0°:13(straight only) 0°:20(straight only)
Pipe length mm 500 1000 1500 1800*
Weight g 550(Pipe lenght:500mm) 710(Pipe lenght:500mm)
Standard paint cup m3 Paint pressure feed tanks, diaphragm paint pumps
