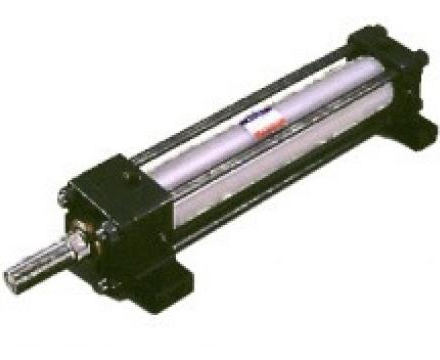

Model :
- T-SB-1CA140BB400ABD-T (Port=Rc1/2)
- T-SB-1CA200BB900ABD-T (Port= Rc1/2)
- T-SB-1CA140BB925ABD-T (Port=Rc3/8)
| Standard | Switch adjusted specification | |
| Series name | T | TR |
| Nominal Pressure | 21MPa | |
| Test Proof Pressure | 31.5MPa | |
| Bore |
Φ40・Φ50・Φ63・Φ 80・Φ100・Φ125・ Φ140・Φ160・Φ 180・Φ200・Φ224・Φ 250 (Until 160 bore for the mountings of LA & CB ) |
Φ40・Φ50・Φ63・Φ80 |
| Range of Operating Temperature |
-10℃~+80℃ (Standard) -10℃~+120℃ (High Temperature Specification) |
-10℃~+60℃ (Standard) -10℃~+100℃ (High Temperature Specification) |
Range of Operating Speed
| Bore | Range of Operating Speed |
| Φ40~Φ63 | 8~400mm/s |
| Φ80~Φ125 | 8~300mm/s |
| Φ140~Φ250 | 8~200mm/s |
Maximum Stroke
| Bore | Maximum Stroke |
| Φ40・Φ50 | 1,500mm |
| Φ63・Φ80 | 1,600mm |
| Φ100~Φ160 | 2,000mm |
| Φ180~Φ250 | 1,500mm |
