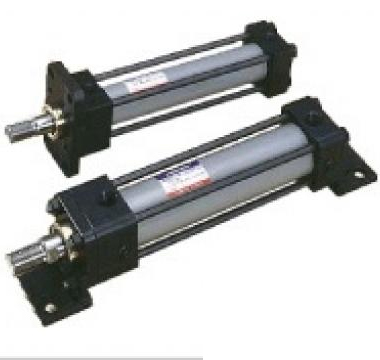

Tie Rod type Cylinder 7-14MPa ( F: Series)

Tie Rod type Cylinder 7-14MPa ( F: Series)

[Liên hệ để biết giá sản phẩm]

Còn hàng

Model :

  • FFR-SA-1TA40BB230ACCABD-2C
  • FFR-SA-1FA40BB750ABD-2C
  • FFR-SA 3FA40CB600ABD 18X40mm
  • FFR-SA 1FA40BB460ABD 40X22.4mm
  • FFR-SA 1FB63BB220BAC 63.35.5mm
  • FFR-SA 1FB63BB250BCD 63.35.5mm
  • FFR-SE 1FA40BB230ACC  40X22.4mm
  • FFR-SA 3TA40BB250ACC 40X22.4mm
  • FFR-SA 1FA80CB50CDB 80X35.5mm
  • FFR-SA 1FA63BB60DCB 63X35.5mm
  • FFR-SA-1FA40BB460ABD-2C
  • FFR-SA-3FA40BB750ABD-2C
  • F8-SB-1TC50C140B300AB-
  • FS-SB1LA50BB1000ABD
  • FSR-SA-1FA50BB650ABD-2C
  • FFR-SA-1TA50BB650ABD-2C
  • FFR-SA-1TA40BB230ACCACD-2C
  • FSR-SA-1FA40BB750ABD-2C
Standard Switch adjusted specification
Series name FS FF FSR FFR
Nominal Pressure 7MPa 14MPa 7MPa 14MPa
Bore Φ32・Φ40・Φ50・Φ63・Φ80
Φ100・Φ125・Φ140
Φ150・Φ160・Φ180・Φ200・Φ224・Φ250
Φ32・Φ40・Φ50・Φ63
Φ80・Φ100・Φ125・Φ140
Test Proof Pressure 10.5MPa 21MPa 10.5MPa 21MPa
Range of Operating Temperature -10℃~+80℃
(Standard)
-10℃~+120℃
(High Temperature Specification)
-10℃~+60℃
(Standard)
-10℃~+100℃
(High Temperature Specification)



Range of Operating Speed

Bore Range of Operating Speed
Φ32~Φ63 8~400mm/s
Φ80~Φ125 8~300mm/s
Φ140~Φ250 8~200mm/s



Maximum Stroke

Bore Maximum Stroke
Φ32 1,200mm
Φ40~Φ50 1,500mm
Φ63~Φ80 1,600mm
Φ100~Φ250 2,000mm
