Bộ chỉnh áp

Bộ chỉnh áp 4

[Liên hệ để biết giá sản phẩm]

Còn hàng

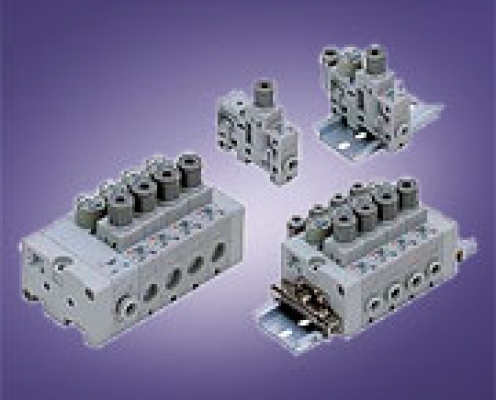

Compact Manifold Regulator ARM10/11

Series/CAD Features Applicable tubing bore size Set pressure (MPa)
Metric size Inch size
ARM11A Manifold
specifications
Common
air supply
φ4 to φ10 φ5/32 to φ3/8 0.05 to 0.7
ARM11B Individual
air supply
φ4,φ6 φ5/32,φ1/4 0.05 to 0.7
ARM10 Single unit
specifications
Standard φ4,φ6 φ5/32,φ1/4 0.05 to 0.7
ARM10F Knob
front face
φ4,φ6 φ5/32,φ1/4 0.05 to 0.7
Features
  • Free selection in response to positioning conditions
  • Knob positions: Top/Front/Bottom
  • Piping directions: Up/Down
  • One-touch fitting varieties: Straight/Elbow
  • Varieties and sizes of One-touch fittings can be changed.
  • Standard model equipped with backflow function
  • Compatible with digital pressure switch



Manifold Regulator ARM

Series/CAD Features Port size Set pressure (MPa)
ARM1000,2000 Manifold (Common IN, Individual IN)
Direct operated relieving style
With backflow function
1/8 0.05 to 0.7
Features
  • With a φ15 compact pressure gauge. (Optional)
  • Standard model equipped with backflow function.
ARM2500,3000 Manifold (Common IN, Individual IN)
Modular type
1/4,3/8 0.05 to 0.85
Features
  • A modular type that can be freely mounted on a manifold station.
  • Optimal for central pressure control.
  • Uses a One-touch lock handle.



Direct Operated Precision Regulator ARP

Series/CAD Port size Set pressure (MPa)
ARP20 (K) 1/8, 1/4 0.005 to 0.4 MPa
0.005 to 0.2 MPa
0.005 to 0.6 MPa
ARP30 (K) 1/4, 3/8
ARP40 (K) 1/4, 3/8, 1/2
Features
  • Setting sensitivity: 0.2% F.S. or less
  • Energy saving, reduces air consumption 80% (SMC comparison)
  • Repeatability: ±1% F.S. or less (or ±3 kPa or less)
  • With backflow function (ARP20K/30K/40K)
  • Can be mounted between a solenoid valve and a cylinder.



Precision Regulator IR

Series/CAD Port size Set pressure (MPa)
IR1000 1/8 0.005 to 0.2
0.01 to 0.4
0.01 to 0.8
IR2000 1/4
IR3000 1/4, 3/8, 1/2 0.01 to 0.2
0.01 to 0.4
0.01 to 0.8
Features
  • Tension control
  • Contact pressure control
  • Setting sensitivity: 0.2% F.S. or less
  • Repeatability: ±0.5% F.S. or less



Vacuum Regulator IRV

Series/CAD Port size Set pressure (MPa)
IRV10 φ6, φ8, φ1/4, φ5/16 -100 to -1.3
IRV20 φ6, φ8, φ10, φ1/4, φ5/16, φ3/8
Features
  • Allows adjustment of vacuum line pressure.
  • Single Sided Connections Series
  • Mass reduced by 20%(Compared with the conventional IRV2000 with IRV20 fitting)
  • Built-in one-touch fittings
  • Easy to attach/detach the pressure gauge or digital pressure switch due to attachment by clip.
  • Mounting direction of the pressure gauge or digital pressure switch can be changed. (Standard connections only)
  • Mounting angle of the pressure gauge or digital pressure switch can be changed easily (in 60 degree increments).



Vacuum Regulator IRV

Series/CAD Port size Set pressure (MPa)
IRV1000 1/8 -100 to -1.30.01 to 0.2
0.01 to 0.4
0.01 to 0.8
IRV2000 1/4
IRV3000 1/4, 3/8, 1/2
Features
  • Allows adjustment of vacuum line pressure.
  • Pressure gauge can be mounted from the front or rear.
  • Panel mounting possible.



Power Valve Precision Regulator VEX

Series/CAD Port size Set pressure (MPa)
VEX1x30,1x33 M5 x 8
1/8,1/4,3/8,1/2,
3/4,1,11/4,11/2,2
0.05 to 0.7
(M5:0.01 to 0.7)
Features
  • Large capacity exhaust regulator.
  • Setting sensitivity: 0.2% F.S. or less
  • Repeatability: ±0.5% F.S. or less



Clean Regulator SRH

Series/CAD Port size Set pressure (MPa)
VEX1x30,1x33 M5 x 8
1/8,1/4,3/8,1/2,
3/4,1,11/4,11/2,2
0.05 to 0.7
(M5:0.01 to 0.7)
Features
  • Large capacity exhaust regulator.
  • Setting sensitivity: 0.2% F.S. or less
  • Repeatability: ±0.5% F.S. or less


Series/CAD Relief mechanism Port size Set pressure (MPa)
SRH Non-relief Rc1/8,1/4,3/8,1/2
9/16-18UNF,
7/8-14UNF
Low pressure type:
0.02 to 0.2
High pressure type:
0.05 to 0.7
Relief Rc1/8,1/4,3/8,1/2
Features
  • Contamination controlled stainless steel regulator
  • Oil-free
  • Two types of diaphragm materials: PTFE, Fluororubber
