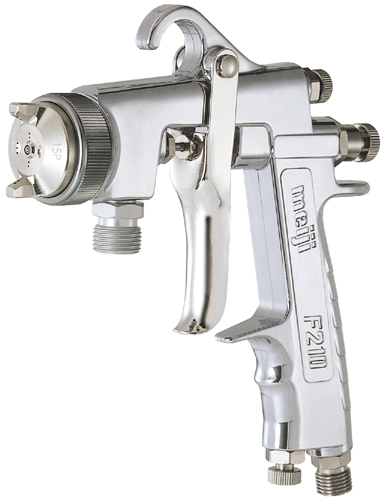

F210 Series
| Model No. | F210-P12P | F210-P15P | F210-P20P | F210-P25P | F210B-P30P | |
| Paint feed system | Pressure | |||||
| Nozzle Bore | mm | 1.2 | 1.5 | 2.0 | 2.5 | 3.0 |
| Standard air cap | 12P | 15P | 20P | 25P | 30P | |
| Spraying Pressure | MPa | 0.25 | ||||
| Spraying distance | mm | 250 | ||||
| Air con-sumption | L/min | 335 | 345 | 375 | 410 | 420 |
| Paint spraying volume | mL/min | 530 | 880 | 1280 | 1710 | 1940 |
| Maximum effective pattern width | mm | 350 | 370 | 400 | 420 | 440 |
| Pattern Shape | Tulip | |||||
| Required compressor output | kW | 2.2 or more | 3.7 or more | |||
| Weight | g | 391 | ||||
| Standard paint cup | Paint pressure feed tanks, diaphragm paint pumps | |||||
| Measurement | m3 | 0.06/25PC | ||||
