| Model No. |

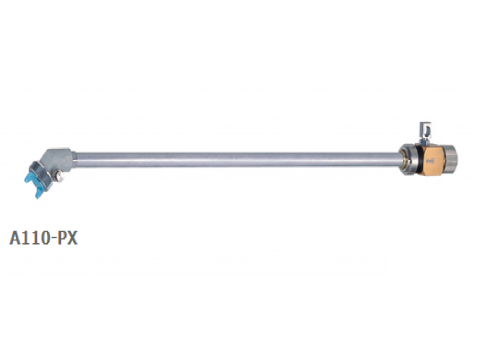

FA110-PX10P <A110-PX10P> |
FA110-PX13P <A110-PXC13P> |
FA110-PX11L <A110-PX11L> |
|
| Type |
With a built-in sprying air valve <Multi-purpose> |
|||
| Extension automatic spray gun | Pipe inside extension automatic spray gun | |||
| Paint feed system | Pressure | |||
| Nozzle bore | mm | 1.0 | 1.3 | 1.5 |
| Standard air cap | 10P | 13P | 15P | |
| Spraying pressure | MPa | 0.25 | ||
| Spraying distance | mm | 200 | ||
| Air con-sumption | mm | 180 | 195 | 70 |
| Paint spraying volume | mm | 245 | 310 | 120 |
| Maximum effective pattern width | mm | 230 | 240 | 60 |
| Head angle and inner dia. info which head can be inserted | mm |
0°:40 45°:55 |
0°:13 | |
| Pipe length | mm | 500 1000 1500 1800* | ||
| Weight | g |
770 (pipe length:500mm) <450 (pipe length:500mm)> |
760 (pipe length:760mm) <440 (pipe length:500mm)> |
|
