KEYENCE Lases Sensors

LR-Z SERIES

Impact resistant shell made from stainless steel, waterproof, oil

Sensing distance: 35 - 250mm

NPN and PNP output

Cable length: 2 - 10m

Response time: 1.5 - 50ms

Display: 3-digit 7-segment display (red), output indicator (yellow), datum indicator (orange), a spot indicator (green)

Voltage: 10-30 VDC

Output: LR-ZB * N: NPN Open collector; LR-ZB * P: PNP Open collector


LV-N series

Type of reflector:

Sensing distance: 50-1200

Retro-reflective type Type: sensor using a reflector

Sensing distance: 0.5-35m

Type of independence and acceptance:

Gap detection: 500 - 2000mm

There are 2 types: 1 and 2 output

Supply voltage: 24VDC

Response time: 1-1.2-1.8-4.2ms

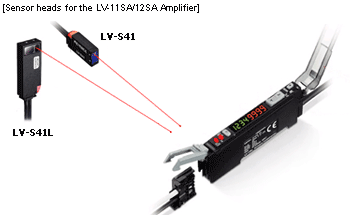

LV-S series Straight-Beam, Retro-Reflective

Sensing distance: 0.5 - 30m

Reflective LV-S series

Sensing distance :120-500mm

LV-S series thrubeam

Gap detection: 250 - 500mm

Response time: 80us-32ms

Output: NPN (PNP) open-collector x 2 ch 40 VDC (30 V) or lower 100 mA max. per output

May extend the 16 unit

Power supply: 12 -24 VDC

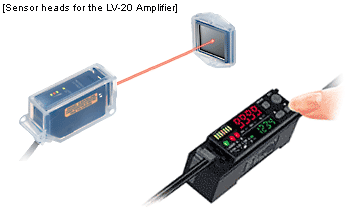

LV-H series Reflective / Retro-Reflective

Sensing distance: 100mm-30m, can be upgraded to 50 m

Spot Thrubeam LV-H series

Sensing distance: 2m

LV-H series beam area

Sensing distance: 55mm-1000mm

Response time: 80us-8ms

Output: NPN (PNP) x 2 channels open collector, 40 VDC (30 V) max., Max. 100 mA, residual voltage (1.0 V max.)

Can be extended: 7 units

Power supply: 12 -24 VDC


Multi-function Analogue CMOS Laser Sensor Series IL

Distance Measurement: 20-1000 mm


CMOS Analogue Laser Sensor IA Series

Distance measurement: 20-100mm

Power supply board amplifier: 10 - 30 VDC


Multi-Purpose CCD Laser Micrometer IG Series

Distance Measurement: 10 & 28 mm

Power supply board amplification: 10-30VDC

Resolution: 1-1000um

Output:

• NPN (PNP) x3ch open collector, 30 VDC (Power supply voltage) or less, residual voltage 1 V (2 V) or less, NO / NC selectable Max. 50 mA / ch
• NPN (PNP) x1ch open collector, 30 VDC (Power supply voltage) or less, residual voltage 1 V (2 V) or less, NO / NC selectable Max. 50 mA, 1. 20 ms response time
• Analogue output (selectable Among ± 5V, 1-5 V, 0-5 V, 4-20 mA)

Thrubeam Laser Detection Sensor Type IB Series

Response time: 80us

Accuracy: 5um

Distance measurement: 1-30mm

Power supply board amplification: 10-30VDC

Resolution: 1-1000um

Output:

• + / -5 V, 1 to 5 V, 0 to 5 V Output impedance 100Ω (analogue)
• 4 to 20 mA Maximum load resistance 350Ω (analogue)
• Open collector (NPN / PNP switchable, NO / NC switchable)

GV Series Digital CMOS Laser Sensor

Distance Measurement: 20 - 1000mm

Resolution: 0.5 - 30 mm

Power supply: 10 - 30VDC

Show on the controller: Dual 7-segment display (Current Value: 3-digit red LED indicator, Preset Value: 3-digit green LED indicator) + 2-color 13-level LED Bar (Red, Green)

Operation status indicators: Control output: Red LED x 2 Channel display: Green LED x 2 laser radiation emission indicator LED Other Green: Green LED LED x 3 x 2/Red

Control output: NPN (PNP) open collector x 2ch, 40 V (30 V) DC max. / Max. 100 mA, residual voltage 1 V max.

Control input: Purple: Pink Laser emission stops (selectable from menu): Bank switch, shift, timing

Response time: 1.5/3/10/20/50 ms

Model :

• LV-NH62
• LV-N11N
