KEYENCE Digital Fiberoptic Sensor

Digital Fiberoptic Sensor (FS-N)

There are 2 types: Type 1 and 2 output

Response time: 50 - 250 - 500us and 1 - 4 - 16 ms

Output: Open collector NPN output, 30 V max., A max output 100 mA or less, 2 total output 100mA or less (use standard alone) / 20mA or less (multiconnect) Residual voltage: 1 V max.

PNP Open collector output, 26.4 V max., An output 100 mA max. 2 total output 100mA or less (use standard alone) / 20mA or less (multiconnect), Residual voltage: 1 V max

Power supply: 12-24 VDC

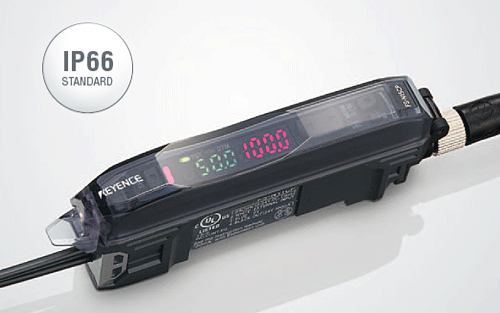

Water Resistant Digital Fibreoptic Sensor FS series

Type 1 output

Response time: 50 - 250 - 500us and 1 - 4 - 16 ms

Output: 24VDC NPN open collector or less; maximum 100 mA max. (40 V max.) Residual voltage: 1 V max. 24VDC or less PNP open collector; maximum 100 mA max. (40 V max.) Residual voltage: 1 V max.

Power supply: 12-24 VDC


FS-V30 Series Digital Display Amplifier

There are 2 types: Type 1 and 2 output

Response time: 33 - 250 - 500us and 1 - 4 - 16 ms

Output: Open collector NPN output, 40 V max. 100 mA (main unit only), 20mA (when the expansion unit connected) Residual voltage: 1 V max.

PNP Open collector output, 40 V max. 100 mA (main unit only), 20mA (when the expansion unit connected) Residual voltage: 1 V max.

Power supply: 12-24 VDC


FS-V20 Series Digital Display Amplifier

Response time: 50 - 250 - 500us and 1 - 4 - 16 ms

Output: Open collector NPN and PNP output, 40 V max. 100 mA; Residual voltage: 1 V max.

Power supply: 12-24 VDC


FS-V Series Multi-functional Digital Amplifier Calibration

Response time: 250 - 500us and 410us-1.7ms

Output: NPN and PNP 40 V max. 100 mA; Residual voltage: 1 V max.

Power supply: 12-24 VDC


Fibreoptic Hybrid FS-V10 Series Sensor

Type reflective sensing distance: 60 - 300mm

Type Thrubeam detection distance: 150-2500mm

Response time: 250 μs (FINE) / 500 μs (TURBO) / 1 ms (SUPER TURBO) 410 μs to 1.7 ms

Output: NPN or PNP open collector 100 mA (40 V max.), Residual voltage: 1 V max.

Power supply: 12-24 VDC


FU series sensor heads

Sensing distance: 10 - 6400mm


CZ-V20 Series

CZ-V20 Series RGB Fiberoptic Sensor Heads

Sensing distance: 15-95 mm

CZ-V21A (P) / 22A (P) Series Digital Fiberoptic Amplifier RGB

Response time: 200 us and 1 - 4-8 ms

Output: NPN or PNP open collector x 4 chanel: 100 mA (40 VDC / 30 VDC max.) Up to 100mA for an output, output up to 200mA for 4, Residual voltage: 1 V max.

Power supply: 24 VDC


Fiber Optic Amplifier Digital RGB CZ series

Response time: 300us / 1ms

Output: NPN and PNP 40 V max. 100 mA max; Residual voltage: 1 V max.

Power supply: 12-24 VDC

Model :

• FS-N11N
