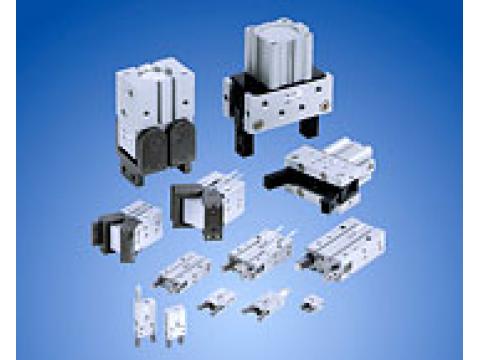

Tay gắp SMC

Tay gắp SMC - 2

[Liên hệ để biết giá sản phẩm]

Còn hàng

Linear Guide Parallel Style Air Gripper MHZx2

Type Series/CAD Cylinder bore size (mm)
Compact MHZA2-6 6
Compact, with dust cover MHZAJ2-6 6
Standard MHZ2 6,10,16,20,25,32,40
Long stroke MHZL2 10,16,20,25
With dust cover MHZJ2 6,10,16,20,25
Features
  • Linear guide improves rigidity and accuracy.
  • Dustproof and dripproof construction
  • Dust cover material selectable



Cross Roller Guide Parallel Style MHQx2

Series/CAD Cylinder bore size (mm)
MHQG2 32,40
MHQJ2 10,16,20,25



Low Profile Air Gripper MHF2

Series/CAD Cylinder bore size (mm)
MHF2 8,12,16,20
Features
  • Reduces the height to approx. 1/3 of the standard gripper
  • Reduces the moment generation with its low profile design
  • Short, middle and long strokes are available.
  • Compact, but a strong gripping force with the double piston mechanism



Wide Type Air Gripper MHL2

Series/CAD Cylinder bore size (mm)
MHL2 10,16,20,25
Features
  • Long strokes
  • Ideal for holding large-size workpieces that have dimensional variances.
  • The double pistons provide a large amount of gripping force.
  • Built-in dust-protection mechanism



Rotary Actuated Air Gripper 2-Finger Type MHR2/MDHR2

Series/CAD Cylinder bore size (mm)
MHR2 Nominal size 10, 15, 20, 30
MDHR2
Features
  • A vertically compact configuration has been achieved through the use of a rotary actuator as the drive force source.
  • Repea

tability: ±0.01 mm

  • Supports class 10 clean room.



Rotary Actuated Air Gripper 3-Finger Type MHR3/MDHR3

Series/CAD Cylinder bore size (mm)
MHR3 Nominal size 10, 15
MDHR3
Features
  • A vertically compact configuration has been achieved through the use of a rotary actuator as the drive force source.
  • Repea

tability: ±0.01 mm

  • Supports class 10 clean room.



Wedge Cam Operation Slide Guide Air Gripper MHK2

Series/CAD Cylinder bore size (mm)
MHK2 12,16,20,25
MHKL2
Features
  • Wedge shaped cam driving mechanism
  • High rigidity with a slide type guide
  • A dust-proof, drip-proof, external force resistant, and environmental resistant type that can be used for a variety of applications.
  • To suit the environment, a selection of dust cover materials (chloroprene rubber, fluororubber, silicon rubber) or stainless steel (SUS304) fingers is available.
  • Long strokes selectable.



Slide Guide Round Body Air Gripper 2-Finger Type MHS2

Series/CAD Cylinder bore size (mm)
MHS2 16,20,25,32,40,50,63
Features
  • Vertically compact, lightweight due to the wedge shaped cam construction.
  • Ideal for operations which external force is applied to, such as press fitting operations.
  • Repeatability: ±0.01 mm
